The Super 315A Brobo Cold Saw is equipped with a High Speed Steel blade for general purpose cutting of ferrous or non-ferrous tubes, shapes, and solids. Machines are supplied as bench models with a steel floor stand-optional. The main spindle rotates in a large bearing area for smooth operation and is driven buy a bronze wormwheel and steel worm shaft. The worm shaft is mounted in tapered roller bearing running in an oil bath. A fully integrated coolant system is standard. Safety guards are installed to offer maximum operator safety and minimum blade exposure while sawing. A safety trigger switch operating handle is standard equipment.
All Brobo Cold Saw machines are covered by a 2 year warranty with a complete selection of spare parts available.
Two three phase motors are available in LOW/MED and MED/HIGH speeds - in two voltages 220V or 440V with 230V single phase single speed an option. Use low speed (26 R.P.M) for stainless steel, medium speed (52 R.P.M) for mild steel and the high speed (103 R.P.M) for non-ferrous materials.
Cutting Capacity
90°
45°
Round
4"
4"
Square
3-1/2" x 3-1/2"
3-3/8" x 3-3/8"
Rectangular
3-3/8" x 3-3/4"
3-3/8" x 3-3/8"
Solid Bar
2"

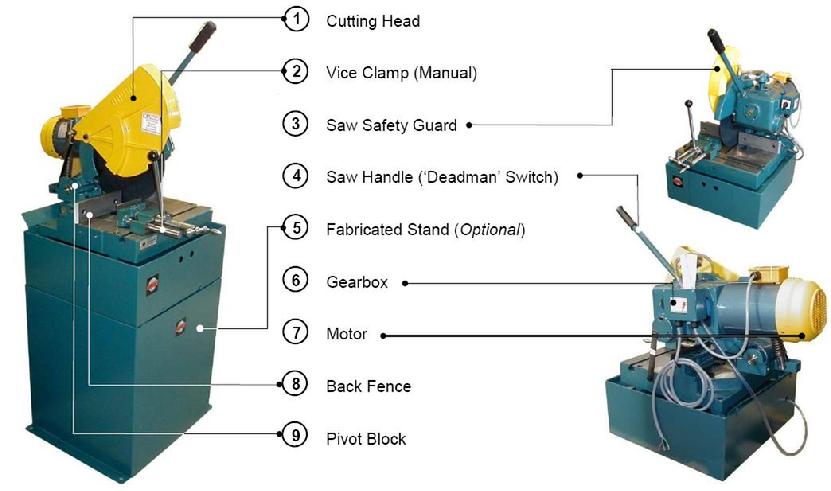

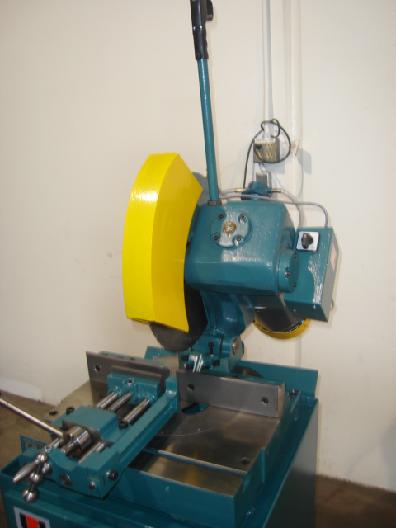

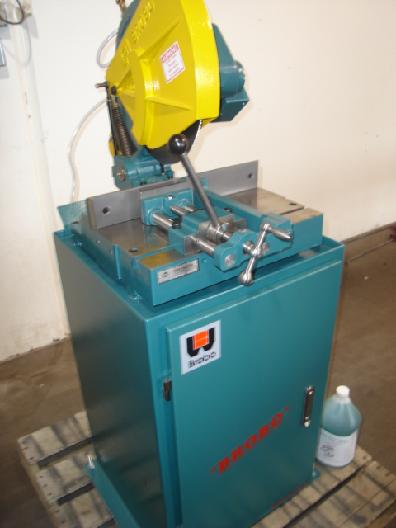

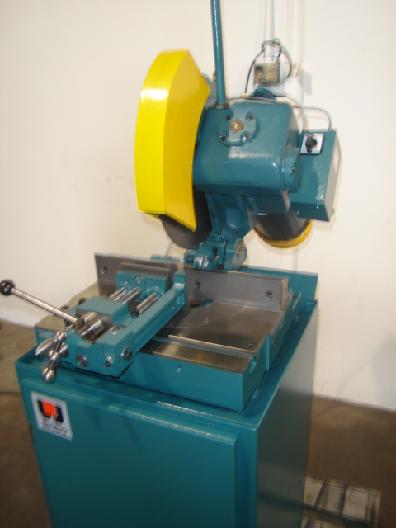

BROBO S350D(14") & S400B(16") COLD SAW MACHINES
Brobo Metal sawing machines are engineered for heavy duty applications, Brobo S350D & S400B ferrous metal cutting saws specifically developed for precision cutting of steel profiles, solids and tubes. Its superior performance and reliability ensures for a burr-free, milled finish.
STANDARD FEATURES • Operator controlled trigger switch • Mitering locking device stops at 45° left, straight 90°, and 45° right • Spindle and drive unit immersed in oil solution and enclosed within gearbox housing for smooth performance and reduce machine wear • Fully integrated coolant system • Saw supplied with one high speed steel blade for general purpose cutting of ferrous solid and tube profiles
OPERATING BLADE SPEEDS • Single Speed (42 RPM) Single Phase, 240V • Low/Medium Speed (21/42 RPM) for stainless/galvanized steel applications • Medium/High Speed (42/85 RPM) for mild steel applications • 3 phase 220V or 440V 60HZ
S350D
Cutting Capacity
90°
45°
Round
4-1/2"
4-5/16"
Square
4" x 4"
3-3/8" x 3-3/8"
Rectangular
3-3/8" x 5-5/16"
3" x 3-3/4"
Solid Bar
2-3/8"
S400B Cutting Capacity
90°
45°
Round
5-1/8"
4-11/16"
Square
4-5/16" x 4-5/16"
3-3/4" x 3-3/4"
Rectangular
4" x 5-5/16"
4" x 3-3/4"
Solid Bar
2-3/8"

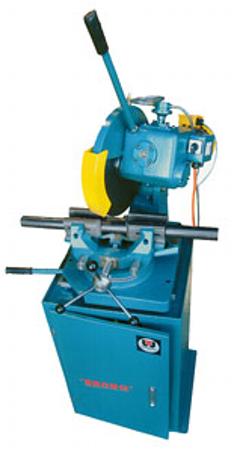

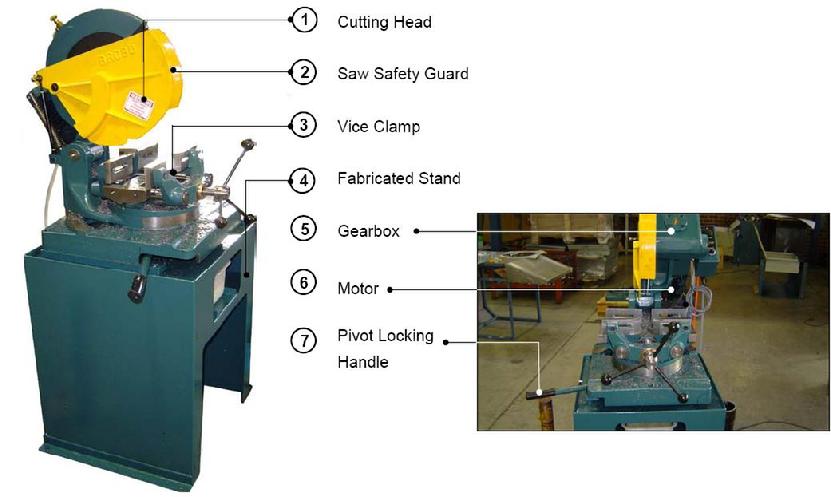

BROBO SCV350(14") & SCV400(16") COLD SAW MACHINES

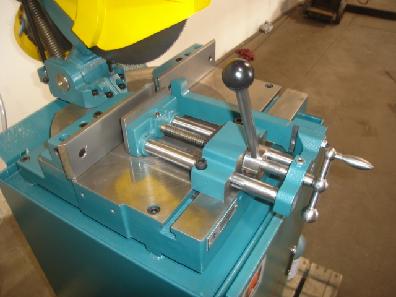

Brobo Self Centering Vise(SCV) Cold Saw Series, SCV350 & SCV400 are manual clamping saws built for accurate cutting of ferrous materials. The self centering clamping vise enables the saw unit to replicate parallel and angled capability to cut beyond 45°. Cutting capacity for SCV350 & SCV400 cold saws are the same capacities as our Brobo S350 & S400 Series.
Brobo S350D(14") & Brobo S400B(16") Cold Saws
