HABERLE METAL CUTTING COLD SAWS
Haberle S225 (9") Cold Saw Machine
Haberle S225 Cold Saw
HABERLE S225 COLD SAW • Powerful saw for sites, installations and work bench, For Cutting Steel, Stainless Steel and Nonferrous Tubes and Profiles • HSS Saw Blade Ø 225 x 32 mm (9") • Head Miters Through 0°-45°-60° • Strong Vise, Opens 102mm (4") • Low Consumption Oil Lubrication • Precision Worm & Wheel Drive • 1-ph. 110v Motor 1.5 HP
CUTTING RANGE
90°
45°
30°
Round
2.7"
2.5"
2.2"
Square
2.3"
2.2"
2.0"
Rectangle
4.0" x 2.0"
2.7" x 2.0"
Solid
2.5"
Haberle S225 Cold Saw Video
Haberle H250 (10") Cold Saw Machine

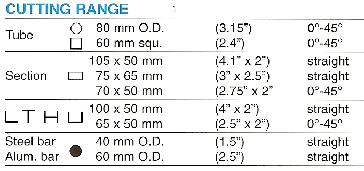

HABERLE H250 COLD SAW • Small production saw for tubes and profiles of mild steel, stainless steel, and nonferrous metals. • 250 mm (10") HSS Saw Blade • Head Miters 0° - 45° • 2-piece safety guard • Pull out coolant tank • Strong Double Grip Vise • Oversized precision worm & wheel drive for full time operation • 1-ph/110v or 3ph/220v-440v 1.5HP Motor
Haberle H250 Saw
Haberle H250 Cold Saw Video

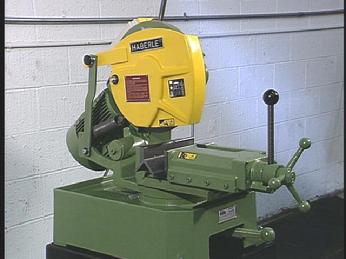

Haberle H300 Cold Saw Machine
Haberle H300 Cold Saw

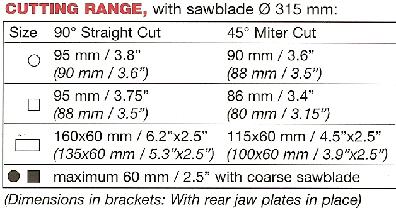

HABERLE H300 COLD SAW • Oversized Gear Drive Designed and Built for Full-Time Operation • Heavy-Duty saw for material stocks, workshops and full time production for cutting steel, stainless steel & non ferrous metals. • Extremely low and strong hardened & ground pivot shaft system • 315 mm (12.5") HSS Saw Blade • Double Grip mechanical vise with quick action handle • Head miters to left: 90°-45° with 1° graduation • 1-ph/110v 1.5 HP & 3-ph/220-440 2.0 HP • Double Grip Air Operated Vise (Optional) • 24V Trigger Switch Assembly (Optional) • Cabinet Base or Fabricated Steel Stand(Optional)
Haberle H300 Cold Saw Video

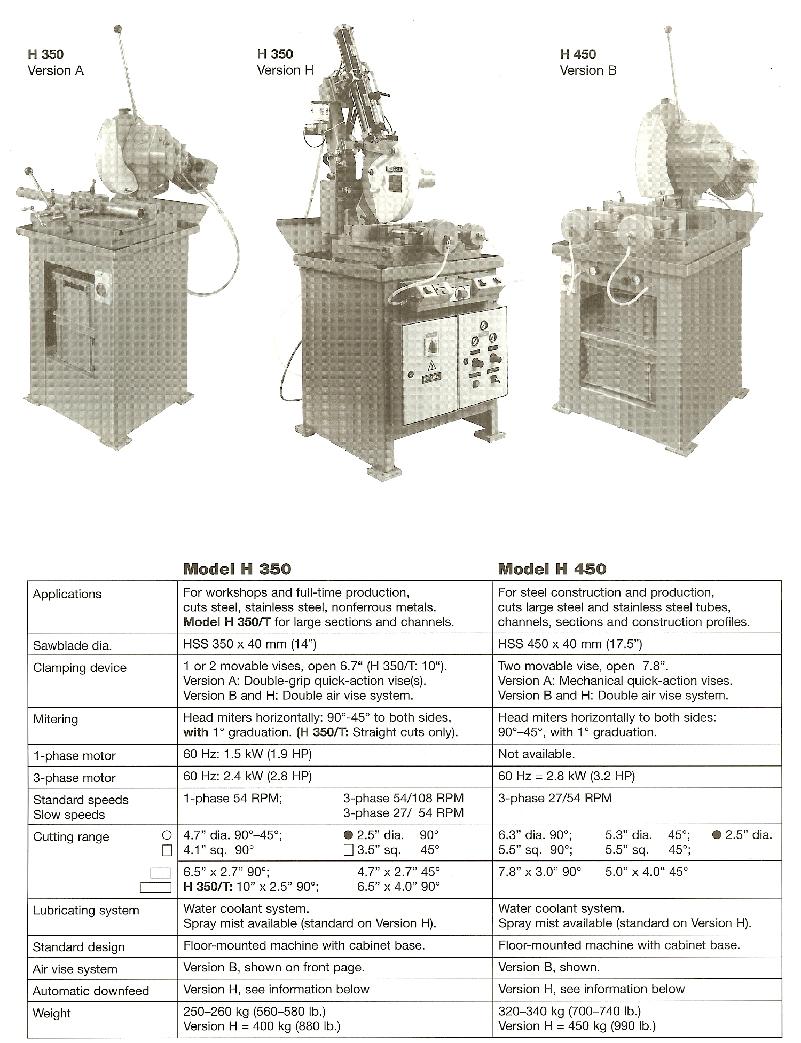

Haberle H350H

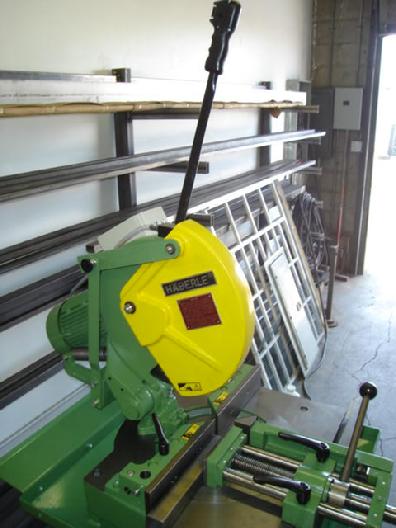

HABERLE 350A W/OPTIONAL 24V TRIGGER SWITCH
HABERLE H450H(18") SEMI-AUTO COLD SAW

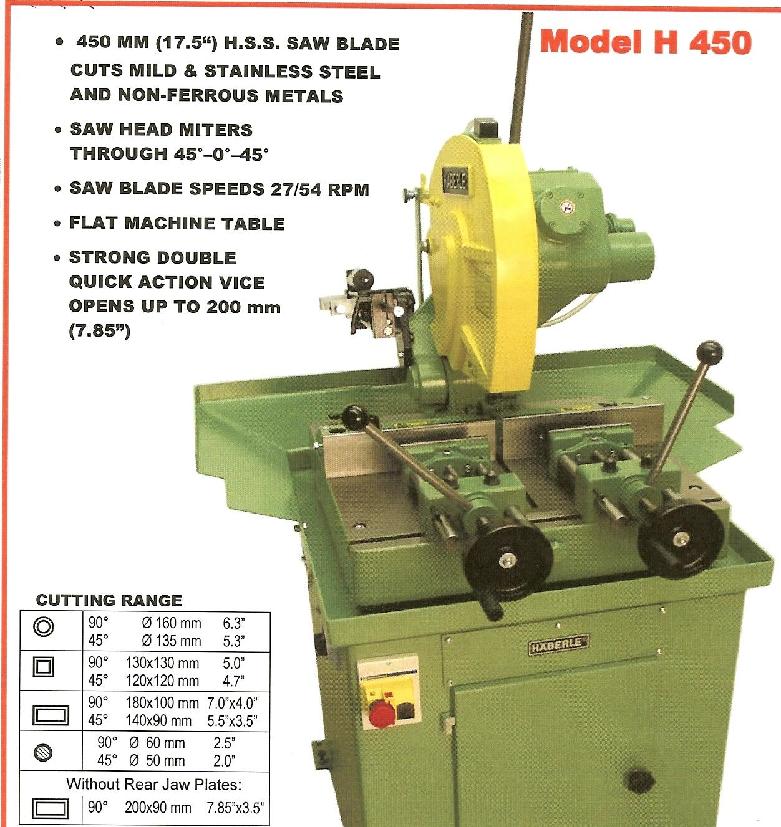

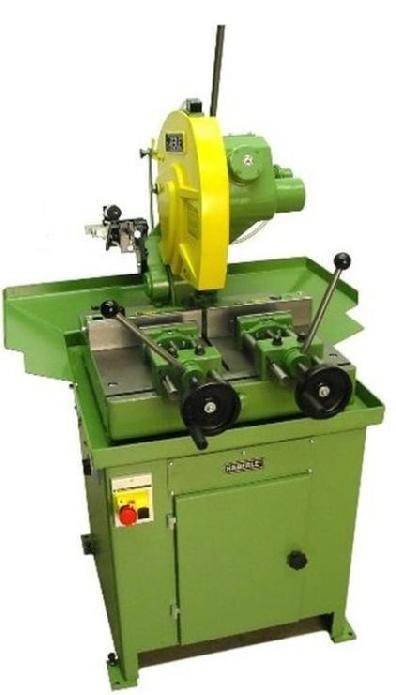

Haberle H450A(17.5")Cold Saw

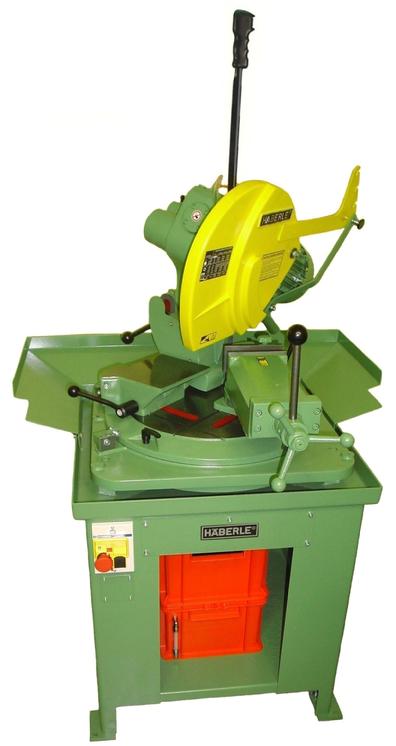

Haberle H90 Cold Saw
Haberle AL380
Haberle AL380H
HABERLE COLD SAWS INFORMATION REQUEST FORM
