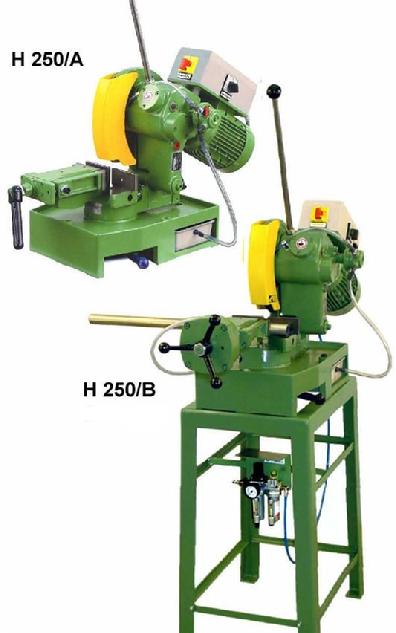

Haberle Model H250 Cold Saw The Handy Cold Saw for Workshops, Installation and Sites
Drive Gear Unit Oversized precision worm & wheel drive, elastic safety coupling, main spindle of 62mm (2.45") dia. running in an oil bath, for full-time operation.
Clamping Unit Strong double-grip vise for burrless straight cuts by clamping also the cut-off piece. For Mitering cuts, the right arm can be taken off in necessary. Replaceable jaw plates.
Mitering Saw Head The saw head turns to the left according to the engraved scale 0° - 45°. Adjustable clamp lever, adjustable screws for the positions 0° and 45°.
Safety Saw Blade Guard Swing guided double guard of cast aluminum, swings forward without jamming vise or workpiece and closes in rest position for best operator's safety.
Drive Motor & Cold Saw Blade Speeds 60 Hz: 110volt/Single Speed 60 RPM (1.5 HP) 60 Hz: 220v or 460v 3-Phase/2-Speed Standard Speeds 60/120 RPM Slower Speeds 45/90 RPM
Coolant System Reliable diaphragm pump, fluid regulator and handy pull-out coolant tank for easy cleaning.
Standard Equipment Set operating wrenches Operator's manual with parts list 1-Ø 10" - 250 X 2 X 40 Saw Blade
Optional Equipment Air clamping equipment Machine Stand Length Stop
