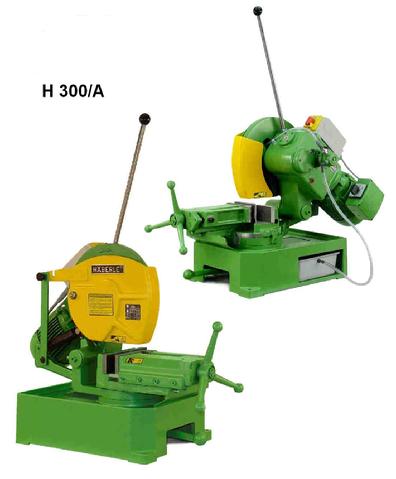

Haberle Model H300 The Legendary Cold Saw For Metal Cutting, Built To Last
Oversized Gear Drive Designed and built for full-time operation. Elastic motor coupling, hardened and ground worm shaft, special bronze worm wheel, main spindle with 70 mm (2.75") bearing.
2-Piece Safety Guard Completely closing guard when the saw head is in rest position. Double latch linkage for free guard movement when the head if lifted to cut. Spring button release for easy sawblade replacement.
Strong Pivot System Extremely low pivot position to the table and large hardened & ground pivot shaft.
Machine Table Heavy cast iron base. The saw head turns to the left 0°-45°, with engraved 1° graduation at the mitering table. Adjustable end positions 0° and 45°, adjustable mitering clamp lever.
Main Switch Motor overload protection. On 3-phase machines, the main switch also has low-voltage trip.
Coolant System Flood coolant system, Diaphragm pump with fluid regulator at the saw head, pull out coolant tray in the base for easy cleaning.
Motors & Saw Blade Speeds 60 Hz: 110volt Single Speed 54 RPM (1.5 HP) 220V or 460v 3-phase/2-speed Slow speeds 27/54 RPM (2 HP) Standar speeds 54/108 RPM (2 HP)
