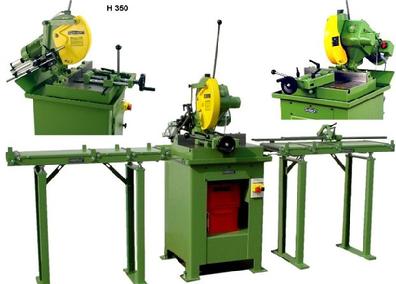

Haberle Models H350A, H350B, & H350H The Unbeatable Metal Cutting Cold Saws
Designed and Built for Full-Time Operation Oversized precision gear drive with elastic safety coupling, hardened and ground worm shaft, worm wheel of special bronze and 70 mm (2.75") diameter spindle running in oil.
Precision Machined Table Flat machined table with built-in precision swivel and clearly marked mitering scale. Vise remains stationary, saw head miters to any position within 45°. Positive locking by spring-loaded pin at 0° and 45°. Mitering table is clamped from top by clamp lever.
Double Yoke Pivot Hardened and ground shaft, adjustable on both sides.
2-Piece Safety Guard Completely close when saw head is in rest position. Double latch linkage for free guard movement when the head is lifted. Quick release by spring button for easy blade replacement.
Haberle Model H350A Double grip mechanical vise with quick-action clamping, clamp levers for quick movement to the left or right side of the saw blade.

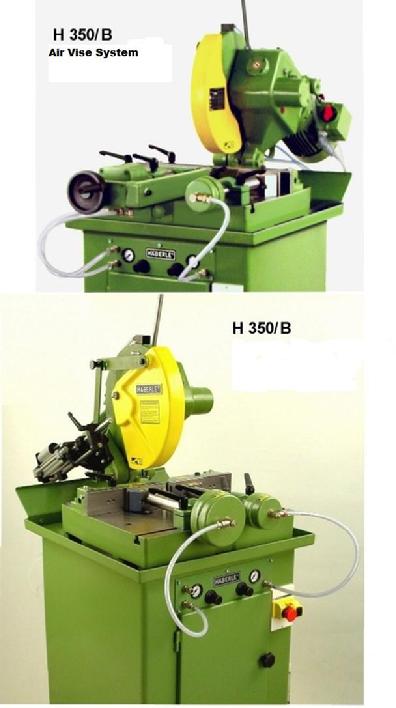

Haberle Model H350B Automatic double air vise system with cylinder stroke 8 mm (3/8"), pilot valve, front regulator and filter lubricator. Clamping is actuated when saw head is moved from rest position by operator's handle. Necessary air supply: 6 bar (90 PSI)
Haberle Model H350H Automatic down feed, Powered saw head with quick forward motion, Adjustable power stroke and quick return, Pneumatic control system with two air vises, Two-hand safety start and emergency stop.
Cutting Capacity
90°
45°
Round
4.7"
4.5"
Square
4.1"
3.5"
Rectangular
7.0" x 2.5"
5.0" x 2.5"
Solid Round
2.5"
Haberle H350H Semi Automatic Cold Saw
