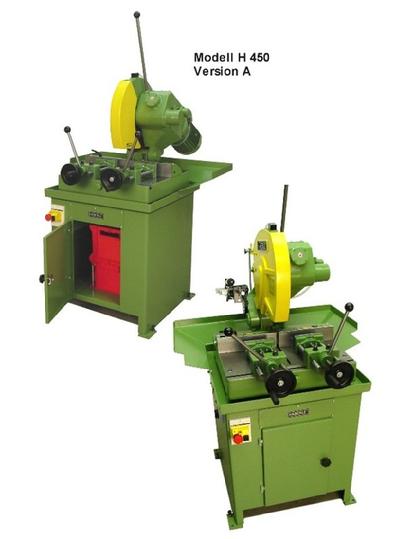

Haberle H450A, H450B , H450H
For Structural Steel and Production,
to cut large tubes, channels, sections and profilesHigh Quality Cold Saw
Heavy duty worm & wheel drive with hardened
and ground worm shaft and special bronze worm wheel,
completely free from clearance, running in an oil bath.
Oversized main spindle for full time operation,
axial adjustable.
Mitering Saw Head
Head easily miters within 45° to any position,
with positive locking at 45°-0°-45°. Workpiece
remains stationary while head rotates.
Clamping SystemH450A-Standard with two manual quick action
vises, each movable and with exchangeable
vise jaw plates.
H450B-Air operated automatic vise system

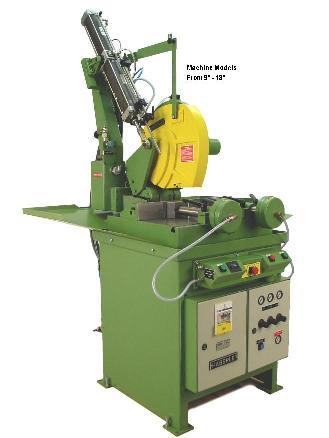

Haberle H450H Semi Auto Cold SawReliable Cold Saws, automatically cutting off all
kind of steel, stainless steel, non-ferrous low tension
metals. The material is fed by hand, the cut-off
cycle is started by two-hands safety start impulse.
H450H Saw Head Feeding DeviceHydro-pneumatic combination unit with oil compensation
system. Adjustable quick motion stop, Continuous precision
adjustment for the power stroke from zero to full speed
motion, adjustable return position and quick-motion
back movement.
Saw Blade Speeds & Motors27/54 RPM (3.2 HP)
220v or 460v
| Cutting Capacity |
90° |
45° |
| Round |
6.3" |
5.3" |
| Square |
5.5" |
4.7" |
| Rectangular |
7.8" x 3.0" |
5.5" x 3.5" |
| Solid Round |
2.5" |
|
