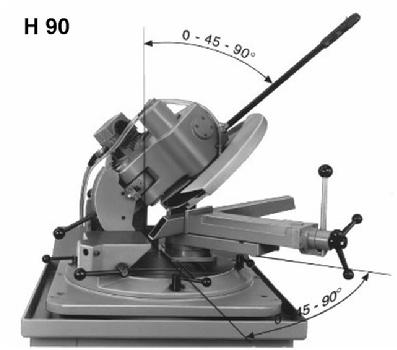

Tilting Saw Head
Allows vertical mitering 0°-90° to the right side. The vise
in place, it allows compound angles with tilted head 0°-45°
and mitered vise 0°-60° according to the 1°-graduations.
Quick adjustment by clamp levers without tools. Safe
handling of the rigid moving head. Large tilting block
for exact angle cuts. Double yoke pivot, adjustable.

Mitering & Moving Vise
Allows horizontal angle cuts 0°-60°. Positive lock by
spring loaded pin in straight and 45° position. To meet
the total cutting range of the saw blade, the mitering
vise can be moved backwards. For notching and slitting
cuts, the vise can be removed and place to the left side.

Notching Cuts With 90° Tilted Head
The vise placed to the left side, the saw head can be
tilted vertical up to 90° for notching cuts into channels
and T-sized profiles. The spring loaded saw head
movement enables exact cuts.

Slitting Cuts In Door Frames
The vise replaced to the left side, it allows also parallel
slits by the positive 90° locking. All adjustments are done
by clamp levers without tools.

Material Support Block
On the left side of the table, supports the cut-off piece
for safe straight and mitre cuts. The block can be moved
when the tilted head makes it necessary and removed
to replace the vise to the left side.

Special Applications
Total altitude between table and saw blade is 210 mm (8.3")
and allows various clamping devices for many purposes,
usually done on a milling machine, like slitting of bolts etc.

Free Adjustable Turn Table
Allows always the same direction of the material feed-in.
After mitering adjustment, turn the whole machine into
position.

Electrical Equipment
3-phase motor with 2-speed selective switch. Main switch
with motor protection. 24 Volt system with stop & go switch
in the operating handle.

Saw Blade Speeds & Motor Power
27/54 RPM (2.8 HP)
54/108 RPM (2.8 HP)
220V OR 460V
