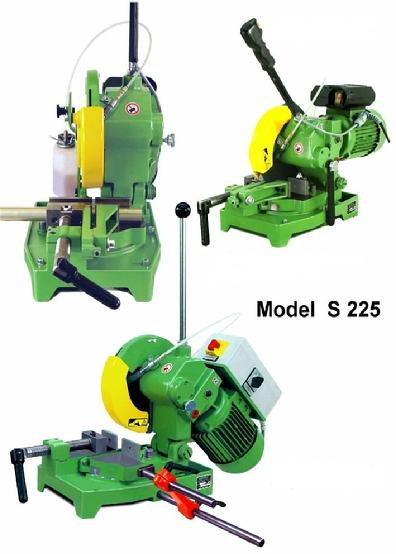

Haberle Model S 225 Powerful saw for sites, installations and workshops
Safety Saw blade Guard Swing guided double guard of cast aluminum, covers the saw blade totally in the rest position. Moving the saw head, the guard opens in the cutting area only, for best operator's safety. Quick release lift-up system to change the saw blade.
Drive Gears Precision worm & wheel drive: Hardened and ground worm shaft. Strong main spindle runs in oil, free of maintenance. Special bronze wheel for long life. Available with standard or reduced speeds.
Available Motors & Electric 60 Hz Cycle: 66 RPM or 66/132 RPM for steel & non-ferrous metals. Reduced speeds: 50 RPM or 50/100 RPM, also for stainless steel. 110V Single Phase/Single Speed (1.5 HP) 220V or 460V 3-Phase/2-Speed (1.2/1.6 HP)
Vise System Double-grip vise with replaceable jaw plates, allows burr free straight cuts and profiled jaws for special applications.
Machine Table, Pivot Bearing Mitering table allows acute mitering to the left with 60°. Engraved 1° graduation, with quick stop bolt at 45°, strong clamp bolt M12(1/2"). In any position, the work piece is supported on both sides close to the saw blade. Large double yoke pivot system with 100mm(3.9") bearing length and cast iron base care for high stability.
Innovative Saw blade Lubrication Patented mechanical low-consumption lubrication system, Haberle S2000 Metal Cutting Biodegradable oil, specially designed to use the machine on sites and installations.
Standard Equipment Instruction manual in English with parts list, operating wrenches, double grip vise, mechanical oil lubrication system, 1 bottle with 1000 ccm cutting oil Haberle S2000, 1-Ø 225 X 2 X 32 mm (9") circular cold saw blade.
