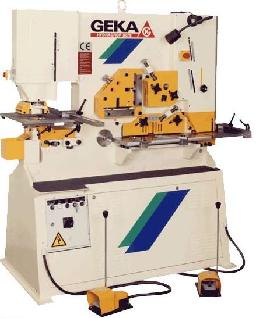

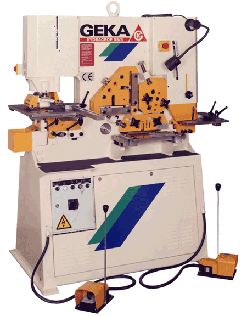

Model series HYDRACROP with capacities from 60 to 240 ton punch and 4" x 4" x 1/2" to 8" x 8" x 3/4" angle. Featuring the most versatile standard equipment package on the market today including; Combination 3" and 4" channel blades, multiple opening round and square bar blades, a set of punches & dies ranging from 5/16" to 1-1/16" and a special offset punch and die holder for punching the legs of small structurals.
4 Series of Hydracrop Ironworkers to suit various needs:
Series A
Standard machine, Single-speed Standard Throat Depths
Series AD
Standard machine, Single-speed Deep Throat Depth Options
Series S
High-speed machine with 2-position foot pedal Standard Throat Depths
Series SD
High-speed machine with 2-position foot pedal Deep Throat Depth Options
High capacity, hydraulic drive machine, dual operator, 5 work stations flat bar shearing, punching, angle shear, round & square bar shear, and notcher.
Available on all of our GEKA Ironworkers, is our exclusive "Productivity Package" which includes the following:
· 39" electric length gauge · Punch gauging table · Notcher gauging table · 10 sets of punches & dies · 3" & 4" channel blades · Offset punch & die holder · Magnetic base work light
Geka Semi Paxy Ironworker
Geka Semi-Paxy CNC PLATE POSITIONING AND PUNCHING SYSTEM
Model SEMI-PAXY For Plate, Angle, and Channel
This is an X-Y coordinate positioning table utilizing your choice of either a Fagor 102 CNC Control or a Windows-based touch-screen control with Geka Pro PC software. The Semi-Paxy may be factory fitted onto any GEKA Ironworker or Single-End Punch with a 20" or larger throat.
Operation: The operator enters the hole punch positions into the control. The program moves the guides to the first hole position. The operator places the material against the guide stops and punches the first hole. The guides then move automatically to the next punching position, according to the programmed information. The operator repositions the material against the guide stops and punches the second hole. Operation continues until program is finished.
Model SEMI-PAXY Specifications
X-Travel:
40” (Optionally extendable up to 216”)
Y-Travel:
16”, 20”, or 25”
Speed (X & Y Axis):
24” to 480” per minute
Minimum positioning distance from center line die:
The GEKA hydraulic punching machines have been designed by experienced technicians, assisted by powerful CAD CAM equipment and adapted to the ongoing suggestions of over 60,000 users of GEKA shears and punching machines, worldwide. This continuos quality improvement ensures that GEKA punching machines, the well-known PUMA models, have;
• Technically demensioned bed. • Cylinder with additional guide. • Strong and accurate shaft system to avoid distortions. • Guided centering punch. • Quick punch change. Safety protection. • Ample space for mounting special equipment. • Optimum operation speed. • Large number of optional, standard and special accesories to perform a wide range of jobs. • A range of punching machines from 50 to 240 Ton, with throats between 5" and 31-1/2".
PUMA 55 GEKA PUNCH
PUMA 80 GEKA PUNCH
PUMA 110 GEKA PUNCH
PUMA 165 GEKA PUNCH
PUMA 220 GEKA PUNCH
PUMA-55
PUMA-80
PUMA-110
PUMA-165
PUMA-220
Punching Power
Tons
60
88
120
185
240
Maximum Capacity
In.
Ø1-1/2"x3/8"
Ø1-1/2"x9/16"
Ø1-1/2"x3/4"
Ø1-1/2"x1-1/4"
Ø1-1/2"x1-1/2"
Throat S model
In.
20"
20"
20"
20"
20"
Throat SD model
In.
30"
30"
30"
30"
30"
PUNCHING ↓
OF ↓
SECTIONS↓
WITH↓
GOOSENECK↓
DIE↓
HOLDER↓
I Beam on the leg
In.
7"-12"
7"-11"
9½"-18"
10"-18"
10"-18"
I Beam on the web
In.
4"-16"
4/"-18"
4"-20"
5"-20"
5"-20"
Channel on the leg
In.
4"-12"
4"-12"
5"-18"
5"-18"
5"-18"
Channel on the web
In.
5"-9"
4"-9½"
5"-11"
5"-15"
5"x15"
GENERAL ↓
FEATURES↓
GENERAL↓
FEATURES↓
Motor power
HP.
6.5
12
12
20
20
Strokes per minute
¾"
37
40
28
28
25
Maximum stroke
In.
2-3/8"
2¾"
3-1/8"
4"
4"
Work height 20"/30"
In.
42"/32"
43"/47"
39"/42"
42"/42"
40"/40"
OPTIONAL ↓
EQUIPMENT↓
OPTIONAL↓
EQUIPMENT↓
Pipe Notching
In.
2-3/8"
2-3/8"
2-3/8"
2-3/8"
2-3/8"
Oversize Punching
In.
Ø4" x 5/32"
Ø4" x 1/4"
Ø4" x 5/16"
Ø4" x 1/2"
Ø4" x 5/8"
CAPACITIES BASED
ON
A MATERIAL
RESISTANCE OF
65,000
TENSILE
STRENGTH.
GEKA PORTABLE PUNCHING MACHINE
Geka PP-50 Portable Punch
GEKA PP-50 portable punching machine has a punching power of 55 tons and a throat of 5". For general punching of flats and steel sections.
• Punching Power: 55 Tons. • Maximum punching capacity 1-1/16" x 1/2" • Throat: 5". • Motor Power: 4.0 HP • Strokes per minute: 23 • Net weight: 780 lbs. • Gross weight: 1060 lbs.
